60w high power outdoor solar streetlight
waterproof IP66 LED Solar Street lighting manufacture
Features:
- 1. Integrated design, making full use of solar resources, simple, stylish, light, and extremely convenient to install. The integrated solar streetlight does not need to be pulled,and two or three people can install one in ten minutes. It provides a variety of installation methods. The lamp post is made from local materials.Iron pillars, wood, bamboo, plastic, etc., low cost.
- 2. Using solar power supply and LED lighting, the two solutions are perfectly combined to save electricity, protect the earth's environment, and save energy.
- 3. Large-capacity and long-life lithium iron phosphate battery is adopted, with a theoretical service life of 5 years, good high-temperature characteristics and long service life,
- ensuring the service life of the entire product.
- 4. Alloy material is used as the main structure, which has good anti-rust and anti-corrosion functions; rainproof structure, safe and reliable.
- 5. Bulit-in with PIR sensor, when someone approaches, the light will be fully on for 60 seconds. When the person walks away, the light will automatically reduce to 50% brightness, effectively saving electricity energy.
Use:
This product is easy to use, with one-button operation, as long as the switch is turned on, the product can work normally without adjustment.
Note:
- 1. Do not disassemble the product without the guidance of our technical personnel;
- 2. When installing the product, try to avoid trees, buildings, etc.
| Malli: | EK-SSL03-L01 | EK-SSL03-L02 | EK-SSL03-L03 |
| Mono-aurinkopaneeli | 6 V 40 W | 6 V 50 W | 6 V 60 W |
| Akun kapasiteetti | 3,2 V 42 Ah | 3,2 V 54 Ah | 3,2 V 60 Ah |
| CCT | 2700K–6500K | 2700K–6500K | 2700K–6500K |
| Kirkkaus | 180 lm/w | 180 lm/w | 180 lm/w |
| Valovirta | 2400–2600 lumenia | 3500–3600 lumenia | 5900–6000 lumenia |
| Latausaika | 6–8 tuntia kirkkaassa auringonvalossa | 6–8 tuntia kirkkaassa auringonvalossa | 6–8 tuntia kirkkaassa auringonvalossa |
| Työaika | 12–15 tuntia (5–7 sateista päivää) | 12–15 tuntia (5–7 sateista päivää) | 12–15 tuntia (5–7 sateista päivää) |
| Ohjaustila | Aikaohjaus + Mikroaaltoinduktio tai infrapunainduktio | Aikaohjaus + Mikroaaltoinduktio tai infrapunainduktio | Aikaohjaus + Mikroaaltoinduktio tai infrapunainduktio |
| IP-luokitus | IP66 | IP66 | IP66 |
| Asennuskorkeus | 6-8 milj | 6-8 milj | 6-8 milj |
| Kahden lampun välisen tilan asentaminen | 20–30 miljoonaa | 20–30 miljoonaa | 20–30 miljoonaa |
| Kiinnitysreikä | φ78 mm | φ78 mm | φ78 mm |
| Kotelon viimeistely | Polyesterijauhemaalaus | Polyesterijauhemaalaus | Polyesterijauhemaalaus |
| Vakioväri(t) | Musta/Hopea Gra | Musta/Hopea Gra | Musta/Hopea Gra |
| Materiaalit | Alumiiniseos Karkaistu lasi Polykarbonaatti | Alumiiniseos Karkaistu lasi Polykarbonaatti | Alumiiniseos Karkaistu lasi Polykarbonaatti |
| Sertifikaatit | CE/RoHS-merkintä | CE/RoHS-merkintä | CE/RoHS-merkintä |
| Takuu | 5 vuotta | 5 vuotta | 5 vuotta |

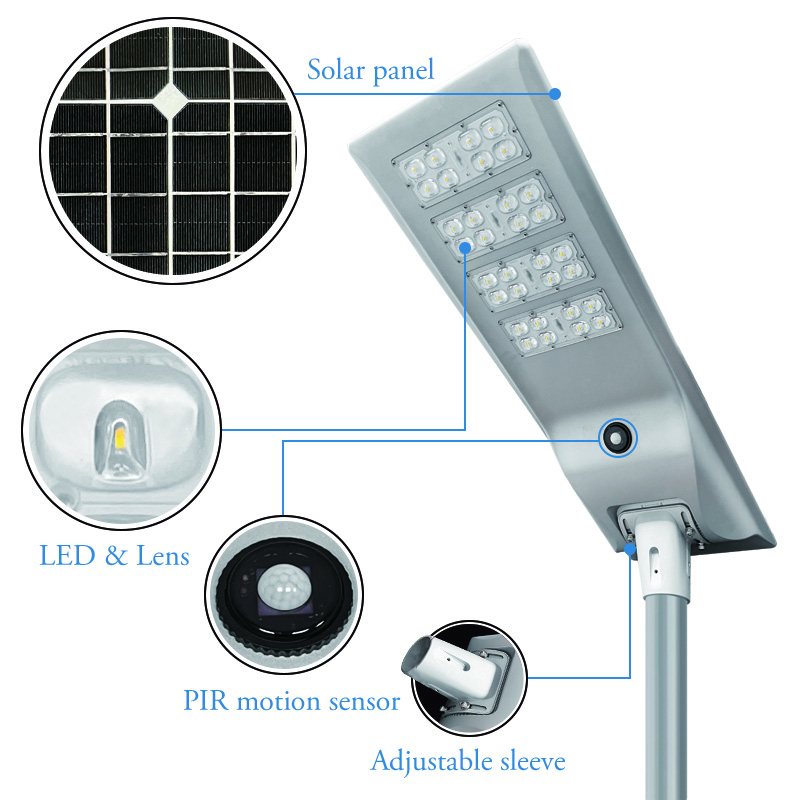

Dissemble illustration
Application:
IP66: The dust density completely prevents the foreign matter invasion and may completely prevent the dust invasion,Prevents the spray water invasion, prevents from all directions by the nozzle spray water enters the lamps to cause the damage.
IK08: 10J Iskuvoima, joka vastaa 200 mm:n korkeudelta putoavan 5 kg:n esineen iskua pintaan.
